  • Cartridge Storage

    Here's snapshots of what I"m calling my new Cartridge Roundhouse - it's a round base designed to hold cartridges mounted on Kuzma headshells (4Point or Ref 313 arms) , with a thick screw-on clear plastic cover. This model holds four carts; FK also offers a single cartridge version. The headshells are held securely but you can tighten down their screws to lock them in place w/ a 2mm Allen key.

    from the bottom L to R: Benz LP S, Alnic Arrow, Lyra Etna.
    Click image for larger version

Name:	DSC01223.JPG
Views:	109
Size:	1.73 MB
ID:	111510

    All buttoned up
    Click image for larger version

Name:	DSC01226.JPG
Views:	91
Size:	1.65 MB
ID:	111511



    Pretty cool, eh? Kuzma makes quality stuff.

    Some here have extensive cartridge collections.

    --> How do you store your cartridges?
    Last edited by tima; 03-31-2019, 03:20 AM. Reason: Edited to re-add pictures that forum software seemed to lose

  • #2
    Damn !!! That is a nice solution....I may have to try the Kuzma 14" on my table for my next significant stereo upgrade (Replace Graham 12" Supreme). I forgot w/Kuzma you can pre-mount carts in removable head shells.

    I wonder if the 14" Kuzma will work with the Air Force One rear tone arm slot ?
    Christian
    System Gear

    Comment


    • JackD201
      JackD201 commented
      Editing a comment
      I don't know Christian. The standard length 4-point can't be mounted on the rear. Front only.

    • rockitman
      rockitman commented
      Editing a comment
      thanks for that info Jack.

  • #3
    Thats briliant. I just toss mine in a bowl!

    Comment


    • #4

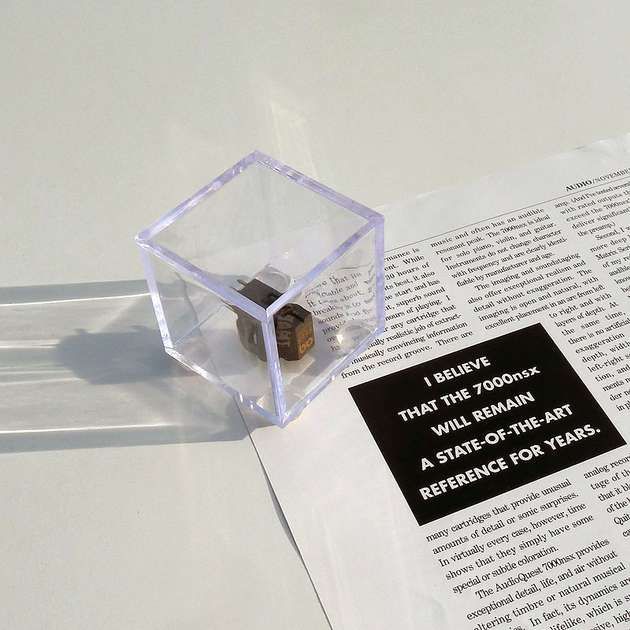

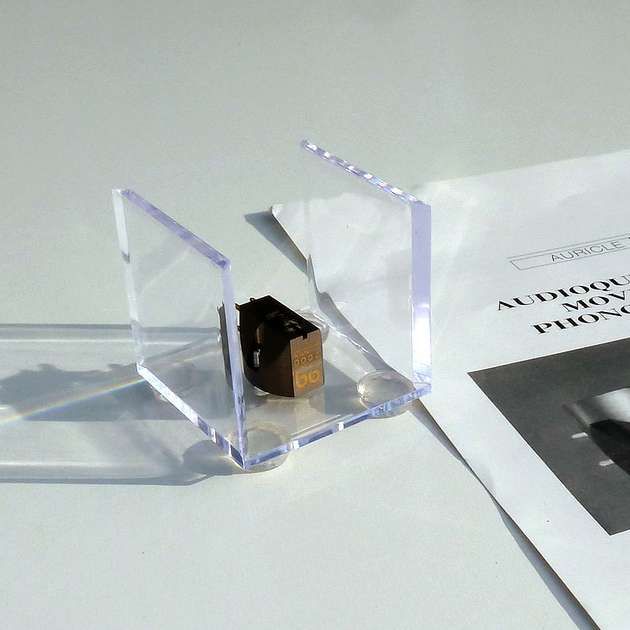

      the idea is from a fellow cartridge collector that uses acrylic golf ball display boxes to ship carts. I now buy these by the dozen and use a jig to drill the holes for the mounting screws and stick on non-skid clear rubber pads. I'm always amazed that someone will buy a 3, 5 or $10K cartridge and throw away all the packaging and lose the stylus guard!

      Last edited by Rob; 03-11-2017, 07:06 PM.
      Linn Kilmax LP12 | Channel D Lino C | innous ZENMini | Kii Three

      Comment


      • #5
        Originally posted by tima View Post
        Here's snapshots of what I"m calling my new Cartridge Roundhouse - it's a round base designed to hold cartridges mounted on Kuzma headshells (4Point or Ref 313 arms) , with a thick screw-on clear plastic cover. This model holds four carts; FK also offers a single cartridge version. The headshells are held securely but you can tighten down their screws to lock them in place w/ a 2mm Allen key.

        from the bottom L to R: Benz LP S, Alnic Arrow, Lyra Etna.



        All buttoned up



        Pretty cool, eh? Kuzma makes quality stuff.

        Some here have extensive cartridge collections.

        --> How do you store your cartridges?
        How confident are you on alignment when changing through your cartridges- do you use your set up your protractors again? or do you find the initial set up and position in the headshell is it after VTA?

        thanks.
        Front end: Aesthetix Io Eclipse with 2 Power Supplies and Volume controls
        Brinkmann La Grange & RonT Tube Power supply with Kuzma 4-point ,FR64S, Brinkmann 12.1 , .Koetsu Jade Platinum,Koetsu Rosewood Signature Platinum, Lyra Atlas, Lyra Etna SL Goldfinger Statement, KLAUDIO RCM, HRSM3X
        Amps: Wyetech Topaz, Futterman H3 Quad II,Citation II, Marantz 8b, 5 ,2
        Pre-Amps:Marantz 7, Marantz Model 1 Consolette Pair
        Speakers: Quad ESL 57, Beveridge Model 3 DD amps, REL S/2 x 2
        Otari 5050BXII, DeHavilland 222

        Comment


        • #6
          Originally posted by kcin View Post

          How confident are you on alignment when changing through your cartridges- do you use your set up your protractors again? or do you find the initial set up and position in the headshell is it after VTA?

          thanks.
          Hi kcin, Good question. To swap a cartridge I first set the headshell parallel to the record. I have one headshell dedicated to my Wally VTA device. Since I record the setup parameters for each cart the first time I do it, its easy to adjust the shims in the Wally VTA and make quick work of that. Then I install the headshell with cartridge attached, fit the arm wires and adjust VTF. The headshell-tonearm fit seems quite precise so normally I don't use the protractor. The times I have checked, things were spot on. I'll play a few records, then do the azimuth, starting with the Fozgometer. I check VTF again and if all is in order I'm good to go. I recorded the mark on the tonearm where I left SRA, so I adjust to that.

          Of course if something doesn't sound right, in the past I have gotten out the protractor. Only once did I make an alignment change. I tend to obsess over alignment but I've developed trust in the stability of the tonearm.

          I see you have the 4Point - is our experience similar?
          Last edited by tima; 03-18-2017, 03:17 AM.

          Comment


          • #7
            Originally posted by tima View Post

            Hi kcin, Good question. To swap a cartridge I first set the headshell parallel to the record. I have one headshell dedicated to my Wally VTA device. Since I record the setup parameters for each cart the first time I do it, its easy to adjust the shims in the Wally VTA and make quick work of that. Then I install the headshell with cartridge attached, fit the arm wires and adjust VTF. The headshell-tonearm fit seems quite precise so normally I don't use the protractor. The times I have checked, things were spot on. I'll play a few records, then do the azimuth, starting with the Fozgometer. I check VTF again and if all is in order I'm good to go. I recorded the mark on the tonearm where I left SRA, so I adjust to that.

            Of course if something doesn't sound right, in the past I have gotten out the protractor. Only once did I make an alignment change. I tend to obsess over alignment but I've developed trust in the stability of the tonearm.

            I see you have the 4Point - is our experience similar?
            Hi, yes, I love my 4-Point- what a great arm. I have 2 blank head shells + the one on the arm but they've largely gone empty as I like set and forget. I use the Brinkmann 12.1 with the 4-Point . I tend to obsess so when I do use the head shell I re-do everything. With the SmartTractor- that exercise has become very easy . I just ordered another cartridge so I will have to make use of the head shells.

            I was curious about your technique. I now use a laser level for leveling - makes it easy then off to VTA and re-iterate the VTF back and forth. The laser level and the SmarTractor have made it "enjoyable".

            Thanks.
            Front end: Aesthetix Io Eclipse with 2 Power Supplies and Volume controls
            Brinkmann La Grange & RonT Tube Power supply with Kuzma 4-point ,FR64S, Brinkmann 12.1 , .Koetsu Jade Platinum,Koetsu Rosewood Signature Platinum, Lyra Atlas, Lyra Etna SL Goldfinger Statement, KLAUDIO RCM, HRSM3X
            Amps: Wyetech Topaz, Futterman H3 Quad II,Citation II, Marantz 8b, 5 ,2
            Pre-Amps:Marantz 7, Marantz Model 1 Consolette Pair
            Speakers: Quad ESL 57, Beveridge Model 3 DD amps, REL S/2 x 2
            Otari 5050BXII, DeHavilland 222

            Comment


            • #8
              Originally posted by kcin View Post

              Hi, yes, I love my 4-Point- what a great arm. I have 2 blank head shells + the one on the arm but they've largely gone empty as I like set and forget. I use the Brinkmann 12.1 with the 4-Point . I tend to obsess so when I do use the head shell I re-do everything. With the SmartTractor- that exercise has become very easy . I just ordered another cartridge so I will have to make use of the head shells.

              I was curious about your technique. I now use a laser level for leveling - makes it easy then off to VTA and re-iterate the VTF back and forth. The laser level and the SmarTractor have made it "enjoyable".

              Thanks.
              I have a laser level and have seen references to using it for tonearm leveling, but I have not tried it yet. I'm skeptical of my own ability to eyeball the optimal locaton of its line on the tonearm. Where on the 4Point do you 'aim' ? Where the cartridge meets the headshell?

              Do you laser level the turntable first? Would that have both table and tonearm based on the laser's notion of level - both on the same plane as it were? Or maybe I don't understand the technique.

              Comment


              • #9
                Originally posted by tima View Post

                I have a laser level and have seen references to using it for tonearm leveling, but I have not tried it yet. I'm skeptical of my own ability to eyeball the optimal locaton of its line on the tonearm. Where on the 4Point do you 'aim' ? Where the cartridge meets the headshell?

                Do you laser level the turntable first? Would that have both table and tonearm based on the laser's notion of level - both on the same plane as it were? Or maybe I don't understand the technique.
                On the 4-point where the cartridge meets the head shell is a good place to shoot the laser. Also approximate centre of the arm is good then the tail high or low is easily observed and very easily adjusted on the 4-point. Skimming the top with the laser and looking for light from the background works too.

                Brinkmann 12.1 is straight so I skim the top and shoot the centre and adjust. SME I use the markings on the arm.

                I do follow up with a millenum block to touch it up if necessary. Thanks.

                Click image for larger version

Name:	millenium.jpg
Views:	190
Size:	10.9 KB
ID:	47429



                Attached Files
                Front end: Aesthetix Io Eclipse with 2 Power Supplies and Volume controls
                Brinkmann La Grange & RonT Tube Power supply with Kuzma 4-point ,FR64S, Brinkmann 12.1 , .Koetsu Jade Platinum,Koetsu Rosewood Signature Platinum, Lyra Atlas, Lyra Etna SL Goldfinger Statement, KLAUDIO RCM, HRSM3X
                Amps: Wyetech Topaz, Futterman H3 Quad II,Citation II, Marantz 8b, 5 ,2
                Pre-Amps:Marantz 7, Marantz Model 1 Consolette Pair
                Speakers: Quad ESL 57, Beveridge Model 3 DD amps, REL S/2 x 2
                Otari 5050BXII, DeHavilland 222

                Comment


                • tima
                  tima commented
                  Editing a comment
                  Thanks!

              • #10
                I'm just getting into VPI tonearms and looking at getting some cases. Over the next few months I need to do some systematic cartridge comparisons.

                Click image for larger version

Name:	Acrylic Tonearm Display Case side view.jpg
Views:	156
Size:	114.5 KB
ID:	47518

                Comment


                • #11
                  Originally posted by tima View Post
                  Here's snapshots of what I"m calling my new Cartridge Roundhouse - it's a round base designed to hold cartridges mounted on Kuzma headshells (4Point or Ref 313 arms) , with a thick screw-on clear plastic cover. This model holds four carts; FK also offers a single cartridge version. The headshells are held securely but you can tighten down their screws to lock them in place w/ a 2mm Allen key.

                  from the bottom L to R: Benz LP S, Alnic Arrow, Lyra Etna.



                  All buttoned up



                  Pretty cool, eh? Kuzma makes quality stuff.

                  Some here have extensive cartridge collections.

                  --> How do you store your cartridges?
                  What you need to get Franc to do is modify that, so it is like a Gatling gun, and swings each cartridge into place as needed. I guess it would add a little mass to the business end of the arm, but.....

                  Comment


                  • tima
                    tima commented
                    Editing a comment
                    my NDA prevents me from saying more.

                • #12
                  There have been such storage solutions available for decades housing removable headshells, the most popular types were the cases.

                  david

                  Click image for larger version

Name:	21-Cartridge-Fetish.jpg
Views:	208
Size:	871.5 KB
ID:	47675
                  Manufacturer: American Sound Turntables and The Nothing Rack
                  Distribution: NEODIO

                  Special Sales: van den Hul
                  Industry Representation: Lamm, Kharma OLS Speakers, Ortofon, ZYX, Keith Monks, Audio Desk, Jensen Transformer, Venta Airwasher

                  Unique Items: Vintage Horn Speakers
                  http://www.audionirvana.org/forum/ti...stening-room-1
                  http://www.audionirvana.org/forum/ti...earfield-setup

                  Comment


                  • #13
                    I'm impressed! How long does it take to switch a cartridge out and and another into an arm? I've never trusted my abilities with such fine motor skills (my daughter said she would play violin with me when I learned how to play in tune!). So I just have one stereo and one mono cartridge, each mounted (by Stirling Trayle, not me) on a different VPI arm wand.

                    Thanks, Larry
                    Analog- VPIClassic3-3DArm,SoundsmithZephyrII+MiyajimaZeroMono, 2xAmpex ATR-102,Doshi3.0 BottleheadPhonoPre,Herron VTPH-2A
                    Dig Rip-Pyramix,IzotopeRX3Adv,Mykerinos,PacMicroModel2
                    Dig Play-mchNADAC, LampiPac, Roon, HQP, Oppo105
                    Electronics-Herron 360Pre,CJ MET1mchPre, Cary2A3monoamps
                    Speakers-AvantgardeDuosLR,3SolosC,LR,RR
                    Other-512Engineer/Marutani Symmetrical Power, ArtKelmGround1, AudioDiskVinylCleaner,AirTightRecordFlat, Scott Rust Interconnects,
                    Music-15KRecs(90%classical),1KR2Rtapes,50TBrips

                    Comment


                    • #14
                      Originally posted by astrotoy View Post
                      I'm impressed! How long does it take to switch a cartridge out and and another into an arm? I've never trusted my abilities with such fine motor skills (my daughter said she would play violin with me when I learned how to play in tune!). So I just have one stereo and one mono cartridge, each mounted (by Stirling Trayle, not me) on a different VPI arm wand.

                      Thanks, Larry
                      HI Larry,

                      Arm setup is just a simple basic skill nothing mystical about it so don't be afraid to try for yourself and like all skills practice makes it better & faster. Of course some arms are easier than others to work with it takes me a maximum of 30 minutes to setup the SME 3012 or similar arms with a new cartridge for the first time. Since I can go back to previous VTA & overhang settings with these arms swapping cartridges is about 5 minutes.

                      david
                      Manufacturer: American Sound Turntables and The Nothing Rack
                      Distribution: NEODIO

                      Special Sales: van den Hul
                      Industry Representation: Lamm, Kharma OLS Speakers, Ortofon, ZYX, Keith Monks, Audio Desk, Jensen Transformer, Venta Airwasher

                      Unique Items: Vintage Horn Speakers
                      http://www.audionirvana.org/forum/ti...stening-room-1
                      http://www.audionirvana.org/forum/ti...earfield-setup

                      Comment


                      • astrotoy
                        astrotoy commented
                        Editing a comment
                        Thanks, David. Larry

                    • #15
                      David's VTA setting procedure is genius and cheap. I thought I had done a respectable job using some leftover metal shims but David one-upped me. He uses a stack of those long and narrow playing cards, then counts out the number he needs for a specific cartridge. When he first started counting them out I thought we were going to play gin or something similar. A low budget tweak with high-dollar reward.
                      Tannoy Glenair, April Sound SET 50 monoblocks and LR phono, EMIA silver remote attenuator and Strain Gauge, Mono TT - AE 208 TT, Abis 1.2BCS arm Miyajima Premium BE, Stereo TT - Fairchild 750 Schroder Custom BA, Miyajima Kansui, Mac Mini w/ Roon, Bel Canto RefLink, Dac 3.5VB, Wadia 860x.

                      Comment
